Manual Contents

• System Requirements (p.2)
• General Game Play Description (p.2)
• Specific Instructions (p.3)
  • New and Autosave Games - Starting (p.4)
    • Base Lesson File (p.4)
  • Difficulty and Speed / Pause Game Settings (p.5)
• Teacher Settings: Teacher Mode (p.6)
• Chemistry: Game Details (p.7)
• Terms & Definitions: Lesson and Dictionary Editor (p.8)
  • Choosing Terms to Practice from a Lesson (p.10)
  • Choosing a Lesson and Defining New Lessons (p.12)
  • Editing a Lesson (p.12)
  • Editing the Main Dictionary (p.13)
  • Entering a New Dictionary Item (p.14)
• Editing Lessons/Dictionary with a Text Editor: Offline Editing (p.6)
• Spoken Language Sounds (p.15)
  • using the CD for spoken language sounds (p.15)
  • using your own sound files for spoken language sounds (p.15)
    • creating new sounds and .wav Files (p.16)
    • example (p.16)
• Monitoring Statistics and Performance Reports (p.17)
  • Collecting statistics for a class (p.18)
• Running software over a Network (p.18)
• Screenshots
  • General Play (p.2)

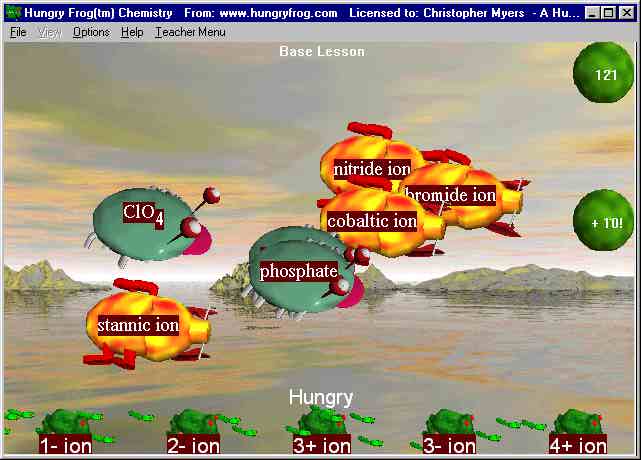

  • Ion Charge (p.8)

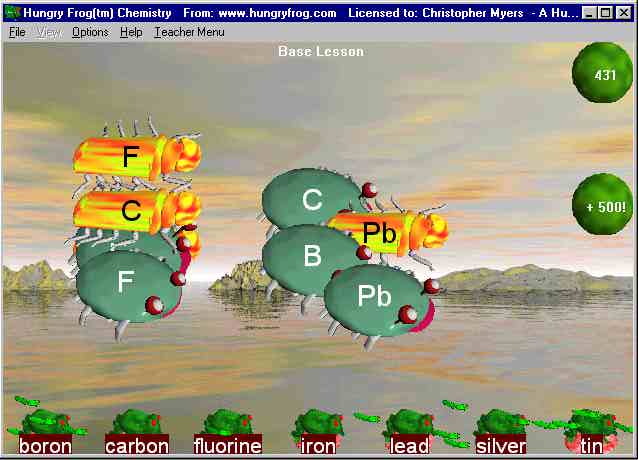

  • Elements (p.9)
  • Lesson Example (p.11)

Hungry Frog Chemistry for Windows

System Requirements

Hungry Frog games require 32 bit Windows 95/98/NT and corresponding Microsoft .dll files which are part of the 32 bit Windows 95/98/NT systems, 16 MB RAM, a Pentium processor and an SVGA video card with 1MB (2MB recommended) of memory capable of displaying 256 colors (1000s recommended).

Playing Hungry Frog Chemistry for Windows

The following screenshot shows the general Hungry Frog for Windows format. In the screenshot you see the following items important in game play:

The Game World is where the game action takes place. Your Frog Family and Tadpoles inhabit the bottom of the world, and the Bugs pass by above. You help your frog family eat by clicking on a frog to make it Hungry and then clicking again on a bug so that the selected (Hungry) frog will eat the bug. If you have chosen the right bug, then your frog will gobble it up and you gain 5 points. If you have selected an incorrect bug, then you will lose 3 points. You can then choose to eat another bug, or you can click on a different frog to make it Hungry. The frog which is Hungry is always marked by a flashing "Hungry" above it. In v3.0 and higher language games, when you click on a frog the word represented by the frog is "spoken" by the computer (you can easily create any .wav representation or modify the default sound representations for the words or phrases in your dictionary).

The Score Ball in the upper right corner of the Game World tallies your score. You also have a fleeting Time Bonus Score Ball which slowly bounces up and down on the right of the Game World. If you clear the Game World of bugs before the Time Bonus Score Ball disappears, you get that bonus added to your score for that level.

When bugs escape out of the Game World (by flying off the right side of the world view), your score is reduced (points are deducted) and the bugs reappear in the upper left corner of the world view. Some bugs move faster than other bugs, and you will need to keep an eye out so they don't slip past and take points away!

When you have cleared the Game World of Bugs, you get your score tallied for the game level just ended and you advance to the next level of play. If you have eaten bugs correctly one after another, you will have an Accuracy Bonus as well as a Time Bonus added to your score. When you have cleared the board, you have also allowed one of your Tadpoles to become a frog so your total number of tadpoles is reduced by one. Your tadpoles are always swimming around with your frogs in the bottom of the Game World.

When you clear the board of bugs, if you have done well at your current level, you will move to the next level and get a new Frog (up to a maximum of 8). If you had problems at your current level, you will remain at that level. If you had severe difficulty in finishing the current level, then you may be bumped down to a lower level to play it again.

Details of Playing Hungry Frog Games for Windows

Just double click on the application icon to start the game (use Windows Explorer to explore the CD or your hard drive if you copied software to your hard drive). If you have not yet registered the software, you must enter your name before you can start playing. After a second, you will see the restore game dialog from which you can choose to restore an auto-saved game, or start a new game:

To start any auto-saved game in the list, just double click on the game name, single click to select it and click OK, or type the saved game name in the box. If you want to start a brand new game, just type a new game name in the box. Note: You can make a new game or reset any running game to the beginning at any time with the "Reset Game" menu item of the "File Menu". If you choose a saved game, the game will pick up from where you left off the last time you played.

Base Lesson File

The "Base Lesson" file will always be available to you. We recommend that you make all of your modifications to the main dictionary in the "Base Lesson" game so all your changes will be in one place. If you want to create new games based on the Base Lesson game, just open the Base Lesson game and then when it is running choose "Reset Game" from the file menu and enter a new name for that game. The underlying data (dictionary Terms, .wav sound files, lesson word lists, etc.) will be carried over into the new game.

IMPORTANT NOTE: If you make a modification to the main dictionary or practice lessons in one game you are playing, the modification will NOT appear in any already saved games. When a game is saved or restored, the game state is saved or restored exactly - without changing other saved games. Changes in one saved game do not have any effect on other saved games. That is why you should make a practice of maintaining the "Base Lesson" game as the game in which you edit or modify the main dictionary. You may also want to make a habit of keeping all changes to practice lessons in the Base Lesson file as well.

Continuing from the above dialog, if you choose to make a new game, the next dialog you see will be the Reset Game dialog in which you set the starting number of frogs, and (if you want) have the option to change your name from the active name:

The game will begin with the number of frogs you choose here.

Difficulty and Speed Settings

From the game Options menu you can change game speed and difficulty at any time during play. Setting the check box for "Play Hard" gives you a more challenging game with more bugs on screen at a time, and changing the slider for game speed makes the bugs move faster or slower. You can always Pause the game at any time if you need to take a break or study the game screen (Pause from Options menu or ctrl-Z).

Teacher Settings: Teacher Mode

You can choose to set the game to "Teacher Mode" if you want students to practice a specific set of problems which the students can not change during the game. To set the game to "Teacher Mode" just enter the password (default is "password") and set the mode on or off from the check box.

When the game is running in Teacher Mode, users must enter the password in order to change the problem types being practiced through the "Edit Bugs" Options Menu item. In Teacher Mode, the auto-save feature of the game is disabled so lessons you define as a teacher will not be overwritten.

Changing the Teacher Password

If you want to change the teacher password from the default "password" password, open the "password.txt" file in the data folder for the application and type over the 8 characters of the word "password" exactly with an 8 character replacement. IMPORTANT: Do not change any other characters in the file. Just select the exact 8 characters of the "password" text in the password.txt file and type in the new 8 characters for your new password. If you ever have a problem with your password.txt file, just delete the file entirely and restart the game. The game will generate a replacement file with the default password "password".

Using Teacher Mode to create Lessons and Tests

To create a series of lessons or tests take the following steps:

1. Make sure "Teacher Mode" is disabled.

2. Create a new game by choosing "Reset Game" from the "File Menu" and choosing a new name and adjusting the starting number of frogs as you wish.

3. Set the "Bug Types" and game Difficulty and Speed settings for the new game.

4. Repeat steps 2 and 3. Each game you make will automatically be added to the saved game list.

5. When you are finished, turn on "Teacher Mode".

6. Let your students play, selecting the saved games from the saved game list. With "Teacher Mode" set, students will have to use the lessons as you defined them, and the game auto-save feature will be disabled so the lessons you wrote will not be overwritten.

Hungry Frog Chemistry: Game Details

In the Hungry Frog chemistry game, you match frogs to bugs by matching frog terms to bug definitions (or meanings). The Hungry Frog Chemistry games use the same kind of database engine as the Hungry Frog Language games. As in the language games, you may also add spoken definitions to correspond to the Terms you define. Definitions (or meanings) appear on the bugs for the corresponding Terms appearing on the frogs.

For example, you can choose to practice ion charge and formula - in which case the frogs will bear the possible ion charges, and the bugs will bear the names and formulae for ions. As for the language games, you can add your own Terms and Definitions or modify any existing Terms or Definition with the Lesson and Dictionary Editor.

The program automatically keeps track of your performance during the game and automatically adjusts game difficulty settings kept within the program to match your ability. By selecting from the Game Options menu you can choose to play with or without sounds, and play an easy or hard game. At any time you can change the Terms you are learning in the game as described below using the Lesson and Dictionary Editor database engine.

Remember, this is the same editor and data engine which is used for the Hungry Frog Language games. If you know how to use the Hungry Frog Language Lesson and Dictionary Editor, you know how to use the Chemistry Lesson and Dictionary Editor.

Chemistry: Lesson and Term "Dictionary" Settings

Like in the Hungry Frog Language programs, you can define or redefine any Lessons (Term sets), and you can modify all existing Terms and Definitions. The basic Chemistry game comes with the following Term sets pre-defined:

• Periodic Table
  • Element Names and Symbols
  • Group Structure
  • Valence Structure
  • Named Element Groups
• Ion Charge and Formula
  • Mono and polyatomic anions
  • Mono and polyatomic cations

You can group these built-in categories together into any lesson structure you want, and you can easily create or delete any Terms and Definitions.

Hungry Frog Games: Lesson and Dictionary Editor

In Hungry Frog Language Vocabulary and Chemistry games you use the Lesson and Dictionary Editor to define lessons and also to edit the main game dictionary. Lessons are simply subsets of the Main Dictionary. Lessons are the sets of Terms from which your students will choose Terms to practice. You can have an unlimited number of lessons, and you can add an unlimited number of Terms to the main dictionary from which your lessons are constructed. The number of Terms you can place in the main dictionary is limited only by your computer memory and speed.

We will go through some examples of adding Terms and definitions to the main dictionary and editing existing Terms and definitions for the Latin game. The same procedures apply to both the Language games and the Chemistry games. Instructions here apply to both and some examples show language dialogs. We will also show how to manage your lesson lists and create your lessons, and we will show you how to have your students pick Terms to practice from lesson Term lists.

Choosing Terms to Practice from a Lesson

In the following example, we'll show you how your students choose Terms to practice from a lesson which you (or they) have previously defined.

Students select the menu item "Edit Bugs" from the Game Options menu. The dialog for selecting practice Terms from the given lesson in play comes up. Students can then select Terms in the lesson list box and click the right arrow (>>) to add them to their practice list, or they can choose Terms in the practice list box and click the left arrow (<<) to remove them from their practice list.

At any time students can choose "Cancel" to exit the dialog without saving their changes. If students exit the dialog by choosing "OK", they will resume play using the new set of Terms to practice which they have just created.

NOTE: Students are not choosing Terms directly from the main dictionary when they select Terms for their practice lists. Students are choosing Terms from one of any number of lessons which you (or they) have set up for them. Each lesson is a subset of the main dictionary from which subset students may choose their practice Terms. Of course, you can decide to make a lesson equivalent to the entire main dictionary by selecting all of the main dictionary Terms to be in the lesson.

The following screenshot is of the dialog box for this selection process where a student is preparing to modify the practice list.

The sample screenshot shows a Game World for those chosen practice Terms.

Choosing a Lesson and Defining New Lessons

You can very easily create an unlimited number (actually over 32,000) lessons without typing anything! You just click to make a new lesson or modify an existing lesson, and then use the mouse to move Terms from the main dictionary into your new or existing lesson. To get started, you click on "Change Lesson" from the "Edit Bugs" dialog (just below the "Available Lesson Terms" list box and the following dialog pops up:

When you move Terms from the Main Dictionary on the left to and from the Selected Lesson on the right, you follow the same procedure as for editing the student practice list. Click the right arrow (>>) to add Terms to the Selected Lesson or choose Terms in the Selected Lesson list box and click the left arrow (<<) to remove them. You can import and export lessons as text files, and you can also read in an exported lesson as a main-dictionary (see below).

NOTE: You can import and export lessons between Jellyfish Fun, Hungry Frog and 49er Gold Rush games.

Editing a Lesson

To edit an existing lesson, just select it by clicking once on its name in the "Select a lesson to edit" list box at the lower right. To create a new lesson click the "Create a New Lesson" button. You can then enter the name for your new lesson and start to edit it at once. Note: You must always have at least one lesson defined, and each lesson must always have at least two items in it. When you create a new lesson, it starts with two new items. You probably will not want these in the lesson, so add your new items first and then remove the default New Lesson items.

Editing the Main Dictionary

At any time from the "Edit Lessons" dialog you can choose to edit the main dictionary by clicking the "Edit Main Dictionary" button below the main dictionary list box. This will give you the "Main Terms and Definitions" dialog from which you can edit, add, or delete main dictionary items. You can also reset the main dictionary to the built-in defaults, or read in a new main dictionary from a file on disk. Just double click on any item to edit it and its definitions or the "spoken" representation of the word (the .wav file which represents that word or phrase). Select multiple items and hit the "Delete Selected Items" button to delete.

Adding a new Item to the Main Dictionary

You can create a new item at any time (you can add an unlimited number of new items bound only by the limits of your computer memory and speed). When you create a new item (or edit an existing item) you will get the "Edit Term and Definitions" dialog box to edit both the term and definitions. You can use any characters other than the '$' and '#' and "%" characters in both terms and definitions. Terms are limited to 30 characters, and definitions to 20 characters. You can freely use spaces in both terms and definitions.

In this dialog you also can specify a .wav file to represent the "spoken" form of the Term. See the section below on adding sounds to learn how to create your own sound files for Terms you add yourself which are not already included with the default main dictionary.

Editing Lessons/Dictionary with a Text Editor

You may edit lessons and dictionary files "off-line" outside of the programs using any text editor. Make sure you open and save the files as simple ASCII text files (.txt extension). To create a lesson file use the "Export to File" command button from the "Edit Lessons" dialog box. To export the entire dictionary, create a lesson of the full dictionary, and export that lesson to a file. To import, just use the "Import from File" command button in the "Edit Lessons" dialog. If you import a lesson file which has terms not already in the dictionary, they will be automatically added to the dictionary.

Example Edit Procedure

The following example uses a simple lesson file exported from the Latin game and adds an example new term and associated definitions entry into the lesson file.

NOTE: You may download these two sample lesson files (ftp://ftp.hungryfrog.com in the DEMO_WINDOWS/samplelessons directory) . The first (samplelesson.txt) is a straight export from the program of a small lesson file (Export Lesson command). The second (samplelessonedited.txt) is the same file with a new term and definition group added. We used Notepad to do the addition as explained below.

The first file was created by choosing "Export to File" command button from the "Edit Lessons" dialog box.

Here is the first file:

#
absens,-entis absens absent
ac (conj.) ac and
ala,-ae F. ala wing
novem novem nine
octo octo eight
radix,-icis F. radix root radish##

We then opened the file with Notepad, and placed a new entry into the file to create a new term called "new latin" with a wav file name "newwavfilename" and two definitions "new def1" and "new def2". We saved the file from Notepad as "samplelessonedited.txt" to create the new lesson.

and here is the second edited file:

#
new latin newwavfilename new def1 new def2
"absens,-entis" absens absent
ac (conj.) ac and "ala,-ae F."
ala wing novem novem nine
octo octo eight
"radix,-icis F." radix root radish##

Your browser probably does not show well the [tab] characters in the above samples. The tabs are as follows:

#[tab]
new latin[tab]newwavfilename[tab]new def1[tab]new def2
absens,-entis[tab]absens[tab]absent
ac (conj.)[tab]ac[tab]and
ala,-ae F.[tab]ala[tab]wing
novem[tab]novem[tab]nine
octo[tab]octo[tab]eight
radix,-icis F.[tab]radix[tab]root[tab]radish##

NOTE: This is very similar to the Macintosh "mini-lesson" format, and you can with a little tweaking import your Mac lessons into the Windows programs.

File Format

The generic file format is as follows for a lesson or dictionary file:

1) FIRST CHARACTER: delimiter for "end of file"
EXAMPLE FILE: # character

2) SECOND CHARACTER: delimiter for definitions
EXAMPLE FILE: "tab" character

3) THIRD CHARACTER: delimiter for terms
EXAMPLEFILE: "enter key" [line feed/carriage return in Windows environment]

4) [any number of terms and definitions separated with the above delimiters]
t0 wav0 t0d0
t1 wav1 t1d0 t1d1
.
.
.
tn wavn tnd0 tnd1 tnd2

5) FINAL CHARACTER: end of file character (defined by first character)

NOTE: The file must be opened and saved as a simple ASCII text (*.txt) file.

You can have any number of terms and defintions. Do not place "blank fields" in the file (e.g. make sure there are no tab tab combinations, or tab return combinations) or the program will not be able to import correctly. The easiest way is to export some samples and play with them. If you do not have a wav file for a term, then it is best to use a "dummy" wave file name such as "nowavefile" for that field. The program will just say "hungry" if there is no wav file - or you can use your own recorded sounds.

Adding and Editing "Spoken" Term Definitions (Game Sounds)

Using the CD for spoken language sounds

By default, the Hungry Frog language programs will use the sound files (.wav files) supplied in the corresponding.wav directory on the Hungry Frog language CD. For example, Hungry Frog French will look in the CD directory \sound files\french\wav for the .wav sound files for the Hungry Frog French program.

The Hungry Frog CD must be inserted in your CD-ROM drive for the programs to access these .wav sound files on the CD-ROM.

NOTE: You can copy the .wav files from your CD onto your hard drive to make the game run slightly faster. Make sure you copy them into the proper directory for the language program you are playing (see "using your own sound files" below).

Using your own sound files for spoken language sounds

In the "Edit Terms and Definitions Dialog" for a main dictionary entry, you see in the "Term Information" box that you can specify a .wav file for any and all of the Terms you define or which are in the built in dictionary. If the .wav file exists, the spoken representation of the Term will be "spoken" by the computer whenever the player selects that Term in the game (by clicking on the given frog representing that term).

NOTE: Do not include the .wav file extension in the filename you type.

The .wav files you create must be stored on your C drive in the ".wav" directory (folder) in the "data" folder for the language game you are playing. For example, for Hungry Frog French the .wav files must be stored in the directory:

c:\HungryFrog\French\data\wav

Example - setting up your own spoken language sound:

In Hungry Frog Latin, to create a new spoken definition of "acer" you would:

1. Create a .wav sound file which speaks the word "acer".

2. Save the file as a .wav sound file named appropriately (e.g. you might name the file "acersound.wav").

3. Place the .wav sound file in the C drive Latin ".wav" directory (e.g. c:\HungryFrog\Latin\data\wav\).

4. Edit the definition of "acer" to include the filename "acersound" as the .wav file for that Term.

Thus, whenever the player selects the "acer" frog, the "acersound.wav" file is "spoken" by the computer to reinforce pronunciation for that Term.

IMPORTANT NOTE: The Hungry Frog software looks first in the ".wav" directory on your C drive and second in the ".wav" directory on the Hungry Frog sound CD for any .wav file you have defined in the "Edit Terms and Definitions Dialog" for a main dictionary entry. Therefore, if both these directories have files of the same name (e.g. c:\HungryFrog\Latin\data\wav\acersound.wav and l:\sound files\Latin\wav\acersound.wav), the sound file from your C drive will be played - NOT the file from your CD drive (L in the example).

Creating new Sounds and .wav Files

You can create or edit the .wav files in the .wav directory (folder) with any sound editor which can save sound files as .wav files. The demo-version of the excellent CoolEdit program is included on your CD. Using CoolEdit makes it easy to edit or create new .wav files. If you use the CoolEdit software regularly, please register your copy with the publisher. Information about the CoolEdit program is included with the software.

(Cool Edit)

Monitoring Statistics and Making Performance Reports

At any time during the game from the "Teacher Menu" you may select the "Statistics" menu choice to call up the Statistics dialog. The Statistics dialog lets you generate a statistics/performance report for the game currently in play or choose to reset the statistics for the game currently in play.

Each game is saved with its own statistics information intact, so if you "Reset Statistics" for the game currently in progress the statistics will not be modified in any games saved under different names. If you do not choose to reset statistics for a given game "name", then statistics will be tabulated over several game sessions. For example, Sam Smith might play under the player name "Sam Smith" four times in a row and then examine the combined statistics generated through the four game sessions.

The statistics report file is a tab delimited text file which you can import into a word processor or spreadsheet for analysis or data management. It contains information about all of the words encountered in the game currently playing AND includes statistics from all previous games played under the same player name.

Collecting Statistics for a Class

It is easy to gather statistics for a class over several practice lesson word lists and any number of days or weeks.

For example, if you used the "Lesson and Dictionary Editor" to define 5 lessons for your class, you would ask each student to sequentially play each of the 5 lessons under a unique player name. If each student entered a unique player name, and each student played each of the 5 word lessons you defined, then their statistics would be separately tabulated across the 5 lessons under each student's unique player name. At the end of the week when each student had completed the 5 lessons, each student could print out their own statistics report based upon their separate names.

As in the above example:

1. Create 5 practice lesson word sets from the "Edit Lessons" dialog page either in an existing game or in the "Base Lesson" game.

2. From the Teacher Menu "Statistics" dialog page, Reset Statistics.

3. Immediately, one after another, for each student (done by you or your students) create a new game under their respective names by choosing "Reset Game" from the File menu and entering a unique player name for each student.

4. Let your students play (in one game session or several) through each of the 5 practice lesson word sets. Students pick out their names from the list (defined in step 3) in the "Restore Saved Game by Player Name" dialog at the start of the game.

5. When each student has played through all of the 5 practice word lessons, from each of their saved games (each under their unique player name) choose "Generate Report" from the "Statistics" dialog page available from the "Teacher Menu".

6. Cut and paste the data into a spreadsheet program to compare students, tabulate data for the entire class or manage information for the class.

Note the difference between a "lesson" as a set of words to practice, and an auto-saved game.

--

That's all you need to know to play! We hope you enjoy the games.

Running software over a Network

You may run site licensed software over a network either with or without a CD as the ".wav" sound file source. When you run without a CD, only ".wav" sound files on the C drive are played.

Running with a CD-ROM as the sound file source:

1) Make sure the sound CD is inserted in the server's CD-ROM drive.

2) Make sure the C drive is accessible and there is space (~ 3 MB) for autosave data files (such files exist in the C drive "data" directory for a given game).

e.g. Hungry Frog Latin requires "c:HungryFrog\Latin\data" to be accessible.

3) Run games by either accessing the corresponding .exe application directly from a shared CD via the network, or by first copying the game .exe application to the shared hard drive before running via the network.

Running without using the CD as the sound file source:

1) Make sure the C drive is accessible and there is space (~ 3 MB) for autosave data files (such files exist in the C drive "data" directory for a given game).

e.g. Hungry Frog Latin requires "c:HungryFrog\Latin\data" to be accessible.

2) Copy the game .exe application from your CD to your shared hard drive (you will not be using the CD, so you need a copy of the .exe application on your hard drive).

3a) Copy sound files from the appropriate CD-ROM sound file directory to the corresponding "data\wav" directory on your hard drive (see "Adding and Editing Spoken Term Definitions" above). Ignore any messages (if any) indicating that sound files on the CD are not found. The game will play the ".wav" file copies on the C drive preferentially.

e.g. For Hungry Frog Latin, copy the "sound files\latin\wav" directory contents from your CD to the "c:\HungryFrog\Latin\data\wav" directory on your hard drive.

OR

3b) Copy from the CD to a logical drive accessible to the game .exe application the exact "sound files" directory structure and contents. This must be at the root level (e.g. for a hard drive volume "F" you would copy directory structure and contents to "F:\ sound files\latin\wav" from the CD "\sound files\latin\wav"). At start, the program will poll logical drives for that directory structure at the root level and will use the copy you made in lieu of the absent CD "sound files" directory contents.

4) Run the .exe game application you copied to your shared hard drive by accessing it via the network.

NOTE: Follow CD HTML manual directions for "Adding and Editing Spoken Term Definitions" to add new ".wav" sound files or replace CD-ROM ".wav" sound file resources with your own files.
